Description
- Power Mode: Mains Electricity
- Megapixels: 5MP
- TF Card: None
- Power Supply: Normal
- Storage: None
- Installation: Embedded
- Color: black
- is_customized: Yes
- Audio Output: WITHAudio
- Minimum Illumination(Lux): 0.01lux
- Viewing Angle : 90°
- Video Compression Format: H.264,H.265
- IR Distance(m): /
- Dimensions (L x W x D)(mm): /
- Power Supply(V): DC12V
- Alarm Action: FTP Photo,Email Photo,Local Alarm
- Power Consumption(W): 12v 1a
- Supported Mobile Systems: Android,IOS
- Sensor Brand: Sony/索尼
- Special Features: Vandal-proof
- Sensor: CMOS
- Model Number: GS-HX4GCA5M-QB Series
- Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,Mac OS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
- Lens (mm): 3.6mm
- Connectivity: 4G
- High Definition: 5.0 Megapixels
- Style: Mini Camera
- Brand Name: GENIUSPY
- Origin: Mainland China
- Certification: none
- Smart home platform: none
- item: 4G SIM Card Mini Ip Camera audio sd card slot
- 5MP senor: 5mp hd sony imx335
- 2MP senor: 2.0megapixel.Starlight IMX307
- audio: support audio with extra microphone build
- app: camhi or camhipro
- support: 4G &sd card storage &phone watch ,,P2P support audio
- PC: support pc /mobile view
- Resolution: 2mp/5mp
- P2P: support
- keyword: 4g ip camera with micro sd card slot&AUDIO
- tf card slot: max128gb
- Lens: 3.7MM Default

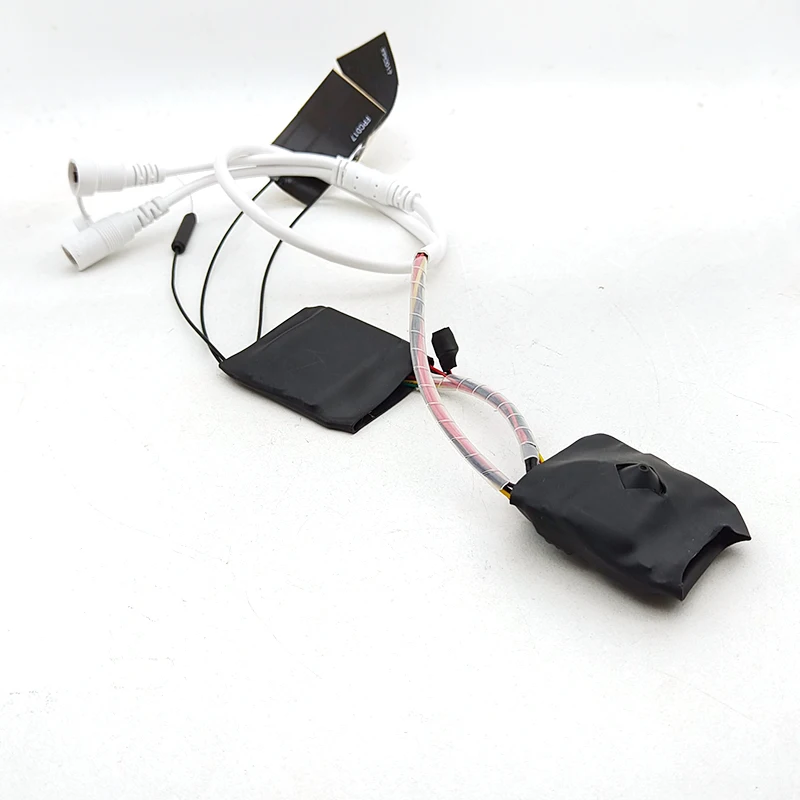

Camhi App DIY 3G SIM IP Camera Module 5MP IMX335 1920P Wireless Mini Battery 4G Pin hole Covert Built-in MIC Micro SD Card Slot
IF YOU NEED battery ,pls click below:
Attenation:
our default package not included battery .,if you need battery ,pls go the link of descripation buy !
|
Please read carefully before ordering |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
NOTICE: Note:
Before purchasing, please consult whether you need 4G or wifi version. 4G version supports 4G network in Europe OR US version MEET your country 4g sim card , and wifi version supports all countries
5MP 4G Version EU – 4G sim card all EU country and Lan Cable support!
2MP 4G Versio EU – 4G sim card all EU country and Lan Cable support!
5MP wifi Version (not 4G) — this is the wifi Version of the camera module, which does not support 4G,
2MP wifi Version (not 4G) — This is the wifi Version camera module, which does not support 4G,
UPS battery Specification as below: IF you need battery ,pls click go below link buy :
|

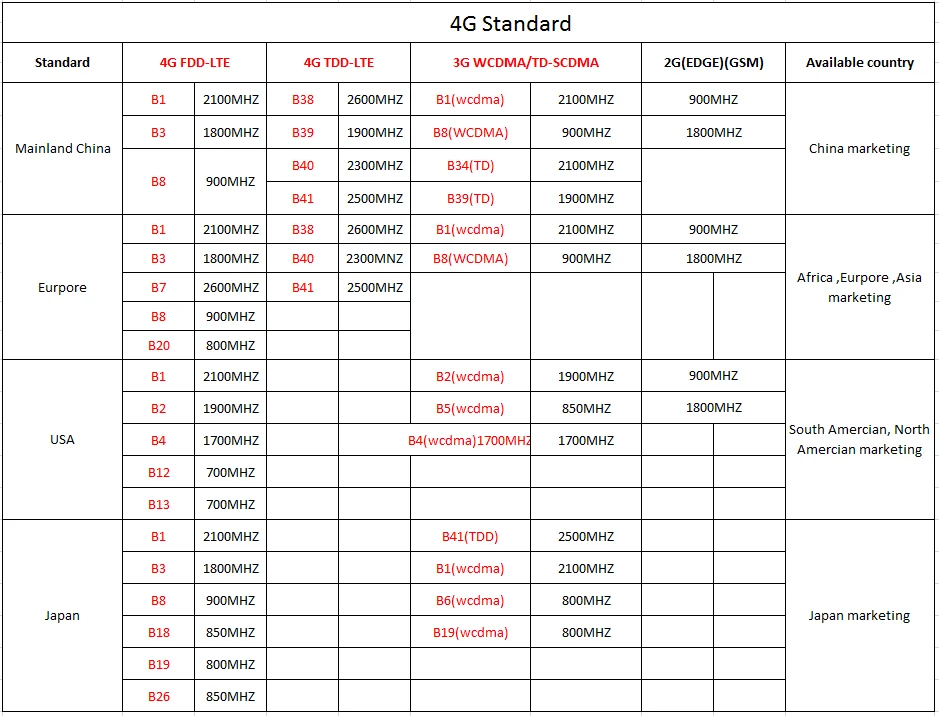

ABCDEFGH lens selection, if you need ,welcome to contact with our team custom made for your requirement !–You MUST check your SIM card frequency range must be in below listed range.
Features:
Support 3G/4G,
Support TF card storage, maximum support 128G Micro SD card; (SD card is NOT include)
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;

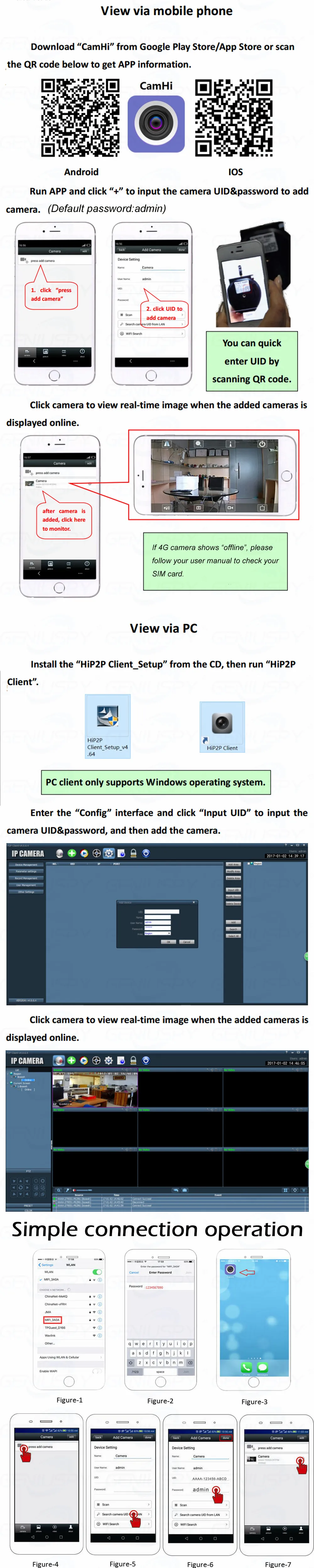

Provide Android & IOS APP and professional CMS PC client software;
Specificaitons: Models: GS-HX4GCA5M-QB/GS-HX4GCMA-QB
|
Camera |
Operating system |
Embedded Linux OS |
|
Processor |
T31X T31N GK7205V300 |
|
|
Sensor |
||
|
1920P :1/2.8" Sony imx335 CMOS 2MP:HI3516E+1/2.7
|
||
|
Lens interface type |
M12 |
|
|
Lens |
3.6mm or 3.7mm Lens default ,other lens optional |
|
|
View angle |
90degree |
|
|
Min.illumination |
0.001lux/0lux (IR on) |
|
|
Day&Night mode |
/ |
|
|
Night vision distance |
/ |
|
|
Video |
Video compression |
H.265 H.264 |
|
Video streaming |
5MP HD three stream |
|
|
Video resolution |
||
|
5MP Main stream: 2560×1920@15fps, 2560×1440@15fps 3MPMain stream: 2560×1440@15fps Sub stream: 2MP:Main stream: 1920*1080P@20fps, 1280×720@25fps Sub stream: 640×480/640×352@25fps, 320×240/320×176@25fps |
||
|
Video code rate |
32~6144Kbps. supports constant bitrate/variable bitrate |
|
|
Video frame rate |
1MP&1.3MP:25fps,2MP:20fps |
|
|
Image settings |
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror |
|
|
Image enhancement |
Backlight compensation,Automatic white balance, Digital WDR, 3D digital noise reduction |
|
|
Function |
Motion detecting |
Can set 4 independent detection region (1-100 sensitivity can be set) |
|
Alarm linkage |
alarm upload pictures and videos to the FTP server, alarm write pictures and videos to Micro SD card, alarm mobile phone message push |
|
|
Privacy mask |
maximum support 4 users to simultaneously browse |
|
|
OSD |
support camera name, date and time information superimposed |
|
|
User management |
Supports user and rights management |
|
|
Simultaneous viewers |
Maximum support 4 users to simultaneously browse |
|
|
Network protocol |
TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP etc |
|
|
Connection protocol |
N/A |
|
|
4G |
4G standard |
FDD-LTE |
|
Frequency range |
B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz) |
|
|
Transmission rate |
Upload max:50Mbps, download max: 150Mbps |
|
|
Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|
|
3G |
3G standard |
WCDMA |
|
Frequency range |
B1(2100MHz), B8(900MHz) |
|
|
Transmission rate |
Upload max:5.76Mbps, download max: 21Mbps |
|
|
Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|
|

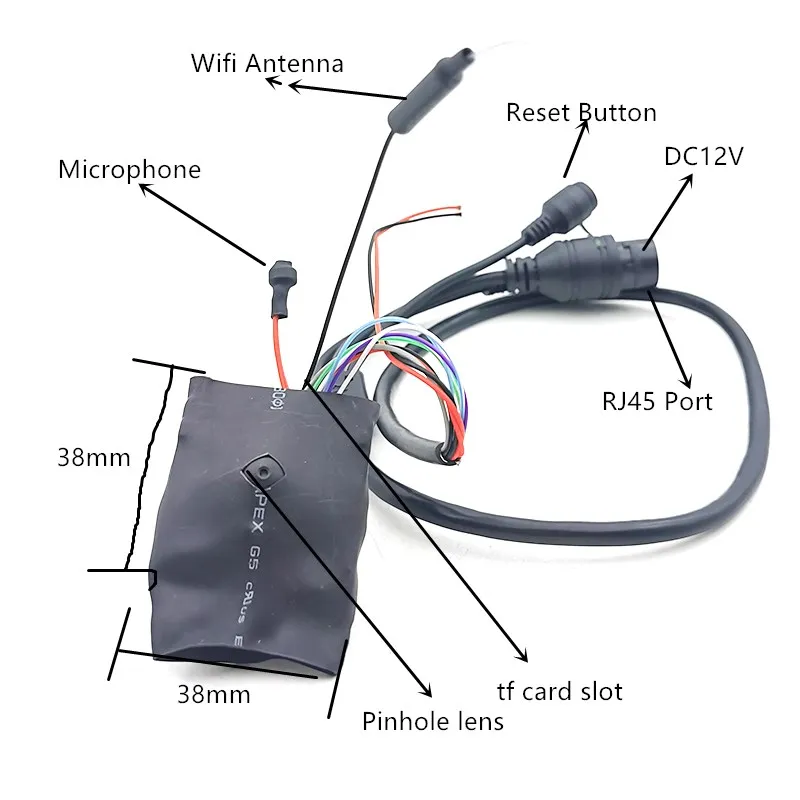

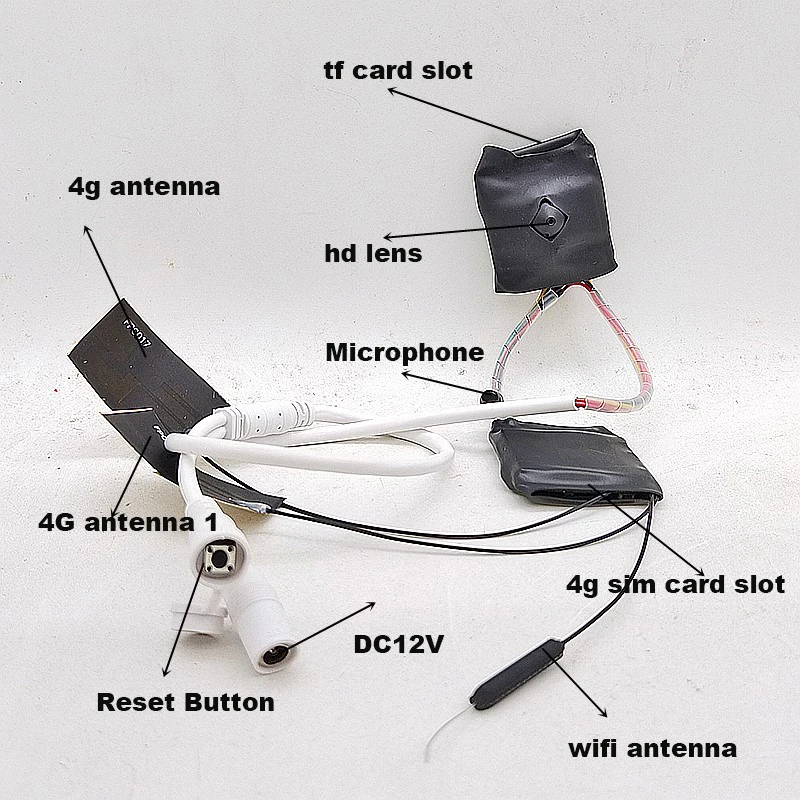

Interface |
Power interface |
5.5mm power interface |
|
Ethernet |
RJ45 & Antenna 10M/100M Adaptive Ethernet Interface |
|
|
TF card Slot |
maximum support 128G TF card, can set the automatic capture and timer recording |
|
|
Reset button |
Support |
|
|
General specification |
Power supply |
DC 12V 1A |
|
power |
Day:3W, Night:8W |
|
|
Operating temperature |
-20 to +60 degree |
|
|
Operating humidity |
10% to 95%(non-condensing) |
|
|
Waterproof level |
NOT Support |
|
|
Material |
/ |
|
|
Installation |
/ |
|
|
Product size(W×D×H)(mm) |
/ |
|
|
Product weight(kg) |
0.38 |
|
|
Accessories |
1*camera , 1*Manual |
|
|
Package Size(W×D×H)(mm) |
18x12x10mm |
|
|
Package Weight(kg) |
0.35 |
Package Include:
If the buyer want other sizelens please ‘Leave Message to Seller’ to notify us when bidding.
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!

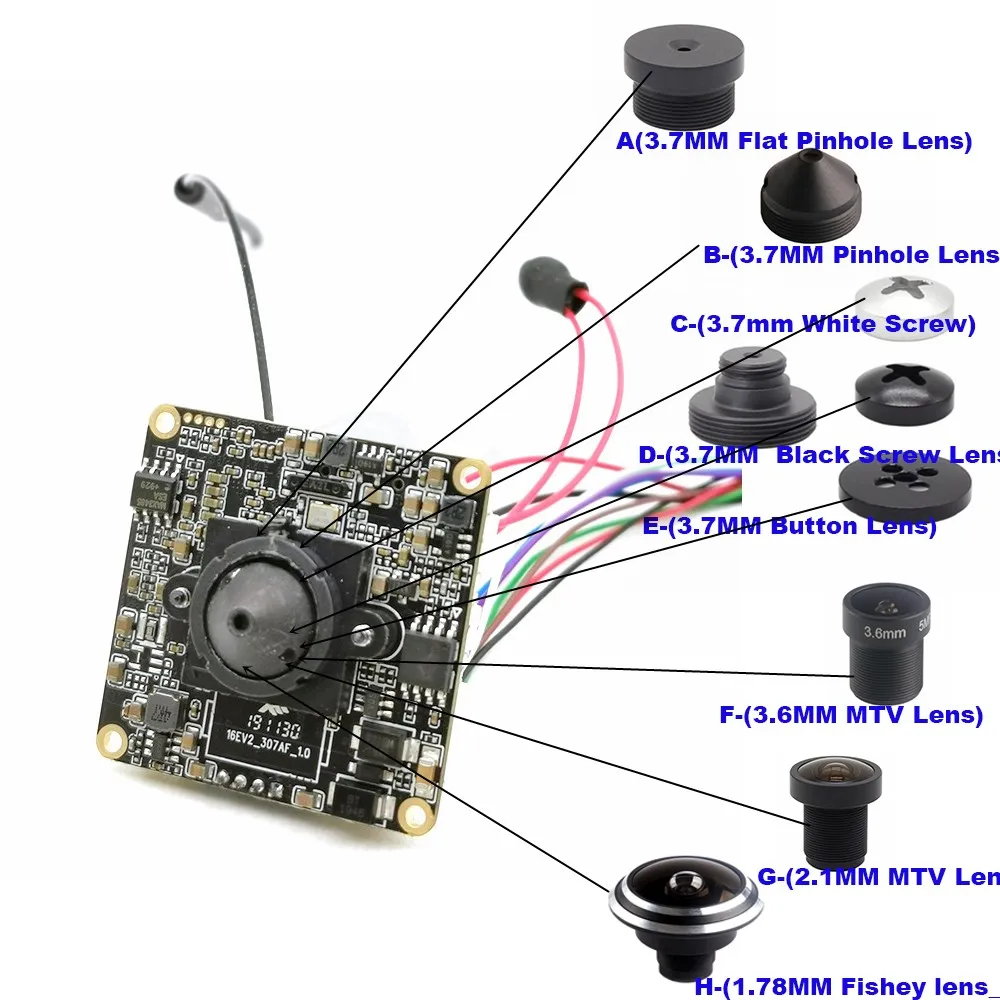

Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whetherit is available for the camera !
