Name: Camhi App DIY 3G SIM IP Camera Module 5MP IMX335 1920P Wireless Mini Battery 4G Pin hole Covert Built-in MIC Micro SD Card Slot
SKU: 1005001345072595
Availability: InStock

Description

AI Functions: Motion Detection
Color Night Vision: no
Operating Temperature: -10°-60°
IP Rating: Other
Rechargeable Battery: none
Scene: indoor
Movement Range(Pan): Other
Optical Zoom: none
Megapixels: 5MP
TF Card: None
Power Supply: Normal
Storage: None
Installation: Side
Color: black
is_customized: Yes
Audio Output: 1CH RCA
Minimum Illumination(Lux): 0.001
Viewing Angle : 90°
Video Compression Format: H.264,H.265
IR Distance(m): NA

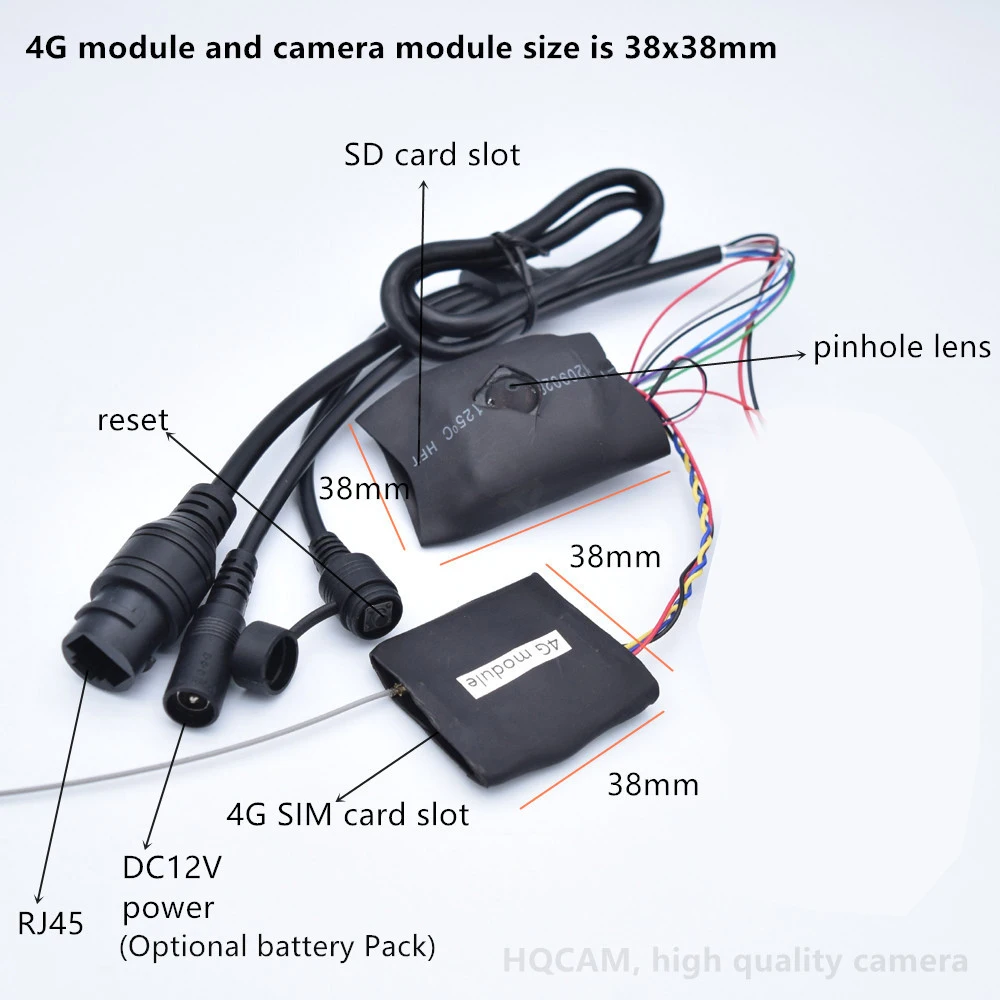

Dimensions (L x W x D)(mm): 38*38mm
Power Supply(V): DC12V
Alarm Action: FTP Photo,Email Photo,Local Alarm
Power Consumption(W): 4W
Supported Mobile Systems: Android,IOS
Sensor Brand: Sony/索尼
Sensor: CMOS
Model Number: HQ-4G10
Supported Operating Systems: Windows 8,Windows 7,Mac OS,Windows XP
Lens (mm): 3.7mm
Connectivity: 4G
High Definition: 5.0 Megapixels
Style: Mini Camera
Brand Name: HQCAM
Origin: Mainland China
Certification: CE
Smart home platform: Other
operating condition: -20 to 70 degree, 90% or less(non-condensing)
4G SIM: Support
Style: Home Secutity Camera 3G 4G
3G / 4G standard: cat4
Style2: p2p camera 4g sim card
audio: built-in
Optional battery: 4g battery camera

NOTICE:

Note:

Before purchasing, please consult whether you need 4G or wifi version. 4G version supports 4G network in Europe and wifi version supports all countries

5MP 4G Versio – 4G support!

2MP 4G Versio – 4G support!

5MP wifi Version (not 4G) — this is the wifi Version of the camera module, which does not support 4G,

2MP wifi Version (not 4G) — This is the wifi Version camera module, which does not support 4G,

5MP 4G add battery– Includes battery and can operate for 20 hours

2MP 4G add battery– Includes battery and can operate for 20 hours

Note: LTE Cat 4,This module supports 4G networks in the following countries. Some customers have already used it

Brazil	4G Europe	Support
Israel	4G Europe	Support
Kuwait	4G Europe	Support
The British	4G Europe	Support
Russia	4G Europe	Support
Italy	4G Europe	Support
Poland	4G Europe	Support
Ukraine	4G Europe	Support
Thailand	4G Europe	Support
Finland	4G Europe	Support
Spain	4G Europe	Support
Bulgaria	4G Europe	Support
Canada	4G Europe	Support
Estonia	4G Europe	Support

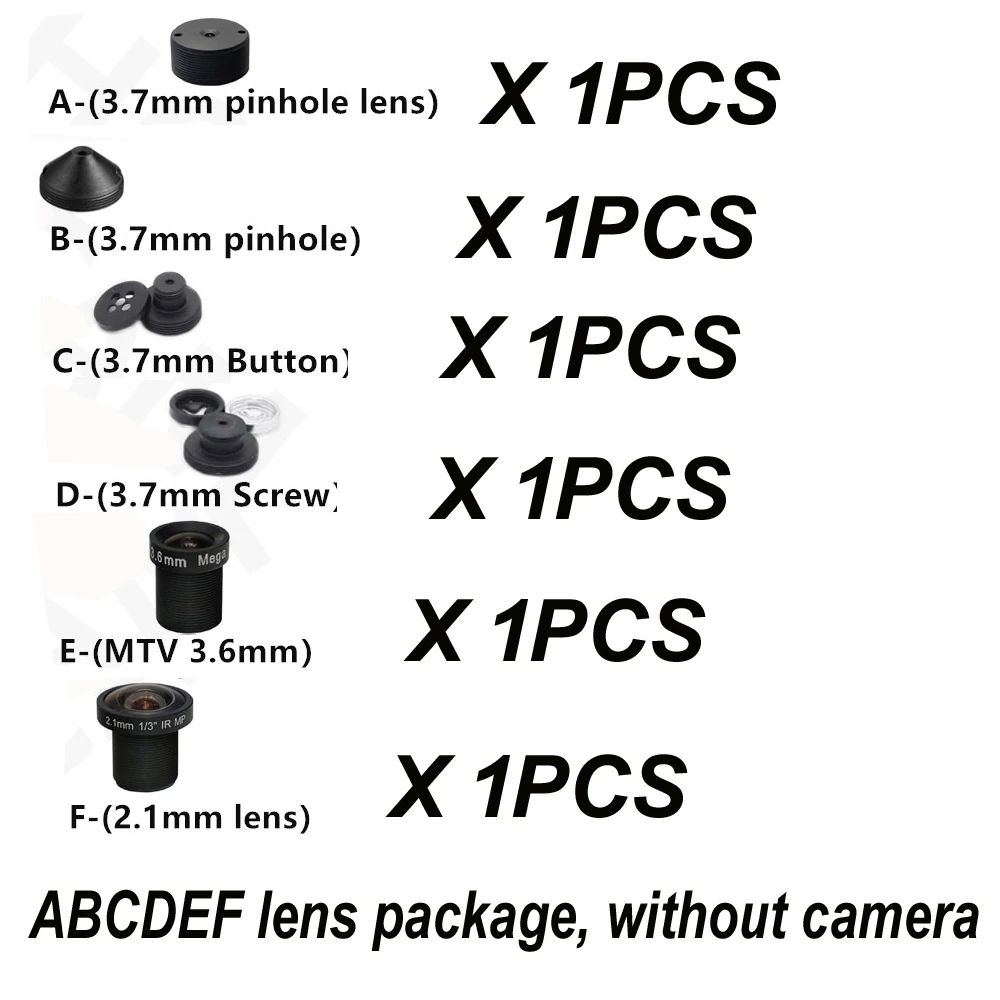

ABCDEFG lens selection, pay link

https://www.aliexpress.com/item/1005001340802636.html?spm=5261.ProductManageOnline.0.0.5e5e4edfdlfDxs

Warm Tips:

Wi-Fi Version NOT works with 3G and 4G,

4G Version Works both 4G,Does not support Wi-Fi.

Important Warning:

If you want to use this 3G 4G IP Camera,

You MUST check your SIM card frequency range MUST be in below listed range.

We will not agree any dispute for your own reason for your wrong order.

3G standard: WCDMA

Frequency range: B1(2100MHz), B8(900MHz)

4G standard: FDD-LTE

Frequency range: B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)

(1)This 3G 4G ip camera mostly used for those environment place not have internet but have SIM mobile signal,

you have to put a SIM card into camera and connect internet by your SIM card.

The camera does not support router internet connection !

(2)This 3G 4G IP camera Connection Way: Insert your SIM card into camera, then power on, connect SIM Card internet.

No need to connect network LAN cable ! No need to setup wifi !

(3)The 3G 4G ip camera does not support local PC clients .

It supports mobile phone app (CamHi) and a remote clients CMS.

(4)The 3G 4G ip camera does not support Cloud FTP storage !

our product is support 3G/4G Wireless connect, nsupport wired connect(RJ45 port work), but we support customized product, if you want wifi AP+4G port, you can leave message for us.
if you want to order the version WIFI AP+4G connection together, please contact the servic.

4G SIM Card Connection

–You MUST check your SIM card frequency range must be in below listed range.

How to quickly set up 3G/4G

First of all , Download APP "CamHi" from the iPhone App Store or Google Play Store. Or scan the QR code

If you choose the camera has 3G/4G. Then when the camera leaves the factory. The default connection to the 3G/4G module (signal MIFI-XX) has been set.

Note:If you use the reset button. Then you need to re-bind the camera to MIFI-xx

You only need a few simple steps.

Insert the SIM card into the camera. Connect the power adapter , wait 10-20s, camera will be ready.

Then open your phone WLAN setting , you will find "MIFI-XXX" and select to connect, the default password is 1234567890

When your phone is connected to MIFI-XX. Then open the app "camhi". Select "Add Camera."

Because your phone is connected to MIFI-XX. So you can choose "Search Camera from LAN". Or directly scan the QR code of the camera.

Then you can see your camera online. You can control the camera and watch videos from your phone.

NOTE:

If view the 3G/4G camera is offline, please check the SIM card”.

Use the mobile phone or PC to connect the WIFI “MIFI_3F41”,the WIFI password is “1234567890”, you can find the WIFI when the

camera starts working. Access “192.168.100.1” through the browser, the page password

is “admin”, you can check the SIM card information on this page.

If your camera display is offline, please note the following:

1.Damaged card or wrong installation direction when prompted "

No SIM Card or SIM Card invalid! ", as shown below:

2.Frequency not supported or SIM card arrears when prompted "No Service" or "Limited Service", as shown below 1):

3.Make sure 3G/4G signal strength is enough, as shown below 2):
